Description

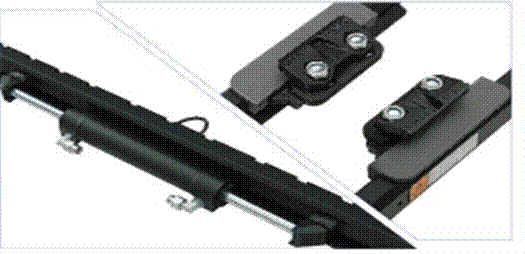

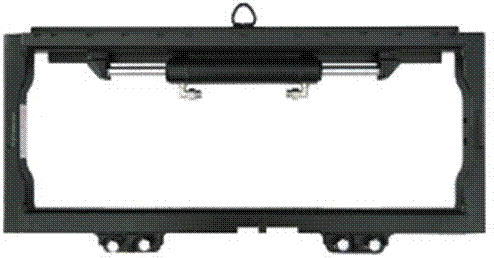

Our company is an experienced China forklift truck supplier; we also provide forklift attachment such as forklift side shifter. Our side shifter is featured with high visibility, uniform speed and no-welding mounting. It can provide pre-drill for easy upgrade. Our side shifter meets international industry standards.
We also provide other forklift side shifter including the following models: 55F-SSS-A257,55F-SSS-A270,65F-SSS-B195,100F-SSS-B257、100D-SSS-02B、100D-SSS-04B、150D-SSS-01C、150D-SSS-14C.
Parameter

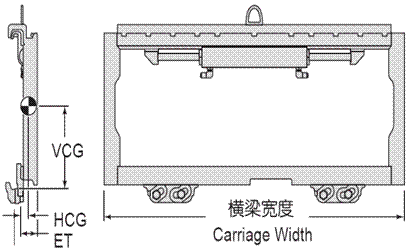

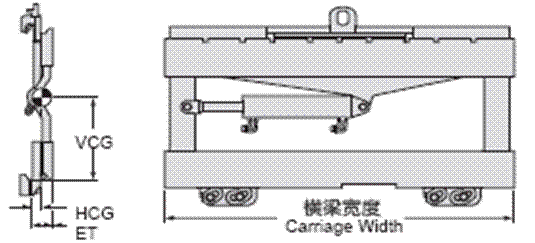

Capacity@Load Center
(kg@mm)
|
New Catalog Order NO.
|
Mounting Class
|
Minimum Truck Carriage Width (mm)
|
Carriage Width (mm)
|
Vertical Center of Gravity VCG (mm)
|
Weight (kg)
|
Effective Thickness ET (mm)
|
Horizontal Center of Gravity CG (mm)
|
|
2500@600
|
55F-SSS-A257
|
Ⅱ
|
895
|
930
|
233
|
54.5
|
59
|
27
|
|
2500@600
|
55F-SSS-A270
|
Ⅱ
|
895
|
1038
|
232
|
55
|
59
|
27
|
|
3000@600
|
65F-SSS-B195
|
Ⅲ
|
935
|
1100
|
300
|
72
|
64
|
27
|
|
4600@600
|
100F-SSS-B257
|
Ⅲ
|
1220
|
1350
|
320
|
140
|
77
|
32
|
|
4500@600
|
100D-SSS-02B
|
Ⅲ
|
965
|
1100
|
392
|
141
|
66
|
33
|
|
4500@600
|
100D-SSS-04B
|
Ⅲ
|
1041
|
1200
|
392
|
149
|
66
|
33
|
|
6800@600
|
150D-SSS-01C
|
Ⅳ
|
1222
|
1532
|
440
|
275
|
84
|
43
|
|
6800@600
|
150D-SSS-14C
|
Ⅳ
|
1526
|
1844
|
440
|
317
|
84
|
43
|
